In modern society, diesel generators play a critical role in ensuring power supply for factories, data center backups, construction site lighting, emergency rescue operations, and outdoor operations. They are energy devices that convert chemical energy into electrical energy, but behind this lies a complex and sophisticated engineering principle. To truly understand how they work, one must first understand the logic of "energy conversion": the chemical energy contained in the fuel releases heat through combustion, which drives mechanical components. This heat then converts mechanical energy into electrical energy through the electromagnetic induction effect of the generator.
The core of this entire process is the diesel engine. When diesel fuel is injected into the combustion chamber, it mixes with high-temperature, high-pressure air and spontaneously ignites, pushing the piston downward, rotating the crankshaft, and thus driving the generator rotor. Unlike gasoline engines, diesel engines use compression ignition, requiring no spark plugs. After air is compressed in the cylinder, its temperature rises to over 600°C. At this point, diesel fuel is atomized and injected through a high-pressure injection system, instantly igniting.
In this process, air is drawn in, compressed, burned, and exhausted in a continuous cycle. Each combustion event generates a high-energy burst, driving the pistons repeatedly. Through a connecting rod system, this linear motion is converted into rotational motion of the crankshaft, generating continuous mechanical energy output. Diesel engines are much more efficient than gasoline engines due to their higher compression ratio and improved thermal energy utilization.
The mechanical energy is transmitted to the generator via a coupling. A generator typically consists of a stator and a rotor. When the rotor rotates at high speed in a magnetic field, an electric potential is generated in the stator windings. This is the principle of electromagnetic induction. The generated AC power is then regulated by a rectification and voltage regulation system, resulting in stable, usable electrical output.

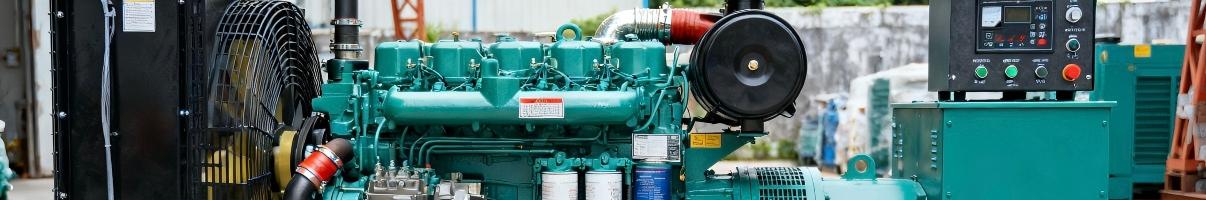

In addition to the power core, a diesel generator also includes a fuel system, cooling system, lubrication system, control system, and exhaust system. Each component works together to ensure stable and safe operation over extended periods of time. For example, lubricating oil reduces metal friction and wear, coolant controls temperature, the electronic speed governor maintains a constant speed, and the exhaust system ensures the smooth discharge of combustion gases and reduces noise.
These systems together constitute a complete power generation system.From fuel input to electrical output, thousands of energy conversions are precisely performed every second. This efficient and reliable operating principle makes diesel generators a solid foundation for industrial and residential power generation.
A diesel generator’s operation can be divided into four continuous stages: intake, compression, power stroke, and exhaust.
1️⃣ Intake Stage: The intake valve opens, the piston descends, and outside air is drawn into the cylinder. Diesel engines typically use a turbocharger system to increase air flow and oxygen density, improving combustion efficiency. Air rich in oxygen promotes complete fuel combustion, increasing energy output.
2️⃣ Compression Stage: The intake valve closes and the piston moves upward, compressing the air to 1/15th to 1/20th of its original volume. This high pressure causes the air temperature to rise rapidly, creating conditions for fuel injection. Compared to gasoline engines, diesel engines have a higher compression ratio, resulting in greater thermal efficiency.
3️⃣ Power Stroke:Fuel is atomized through a high-pressure nozzle and injected into the combustion chamber. Mixing with high-temperature air, it immediately ignites spontaneously. The high pressure generated by the explosion pushes the piston downward, rotating the crankshaft. The crankshaft's rotational energy is balanced by a flywheel and transferred to the generator shaft, where it is converted into electromagnetic energy.
It is worth noting that modern diesel engines generally utilize an electronically controlled high-pressure common rail injection system. By precisely controlling the injection amount, timing, and pressure, this system ensures more complete combustion, lower noise, and cleaner emissions.
4️⃣ Exhaust Stage: The exhaust gas after combustion is discharged through the exhaust valve and then through the exhaust pipe and silencer into the atmosphere. Some units are equipped with a turbocharger, which uses the energy of the exhaust gas to drive the compressor, improving the intake efficiency and achieving "energy recovery."
These four stages form a complete cycle, reciprocating thousands of times per minute. Of the heat energy generated during each combustion cycle, approximately 40% is converted into mechanical energy, while the remainder is used to drive the cooling and exhaust systems or dissipated as heat. This efficient energy conversion is the essence of the diesel engine and the reason it is widely used in industry, construction, communications, transportation, and other fields.
In addition to mechanical and combustion principles, the control system is also a crucial component of diesel generators. Modern units are commonly equipped with intelligent controllers that monitor voltage, current, frequency, temperature, and oil pressure in real time, and provide automatic start, shutdown, and fault protection functions. In the event of a power grid outage, the control system can start the unit within 10 seconds, ensuring uninterrupted emergency power supply.
In data centers, hospitals, or large event venues, diesel generators often operate in conjunction with UPS systems. When the main power source goes out, the UPS provides instantaneous, seamless power, while the diesel generator starts up and takes over the longer-term power supply. This efficient transition is a hallmark of modern power generation systems.
To maintain stable power output, several factors must align: fuel quality, cooling efficiency, load balance, and maintenance discipline.
Fuel and Injection: Poor fuel causes deposits and uneven combustion; high-pressure injection ensures complete burning and lower noise.
Cooling and Lubrication: Circulating coolant keeps temperature optimal, while oil reduces friction and wear.
Load Matching: Best efficiency occurs between 70–90% rated load, avoiding both underloading and overheating.
Maintenance: Regular oil and filter changes, plus real-time monitoring, extend service life and reliability.
Practical Value: With superior diesel engine efficiency and low operating cost, diesel generators remain the backbone of power supply in remote areas, hospitals, ships, and construction sites.
From off-grid mining to disaster recovery, diesel generators provide more than just energy—they ensure safety and continuity where power matters most.
