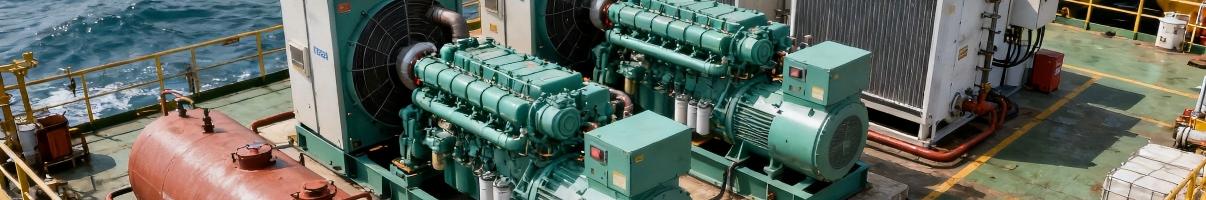

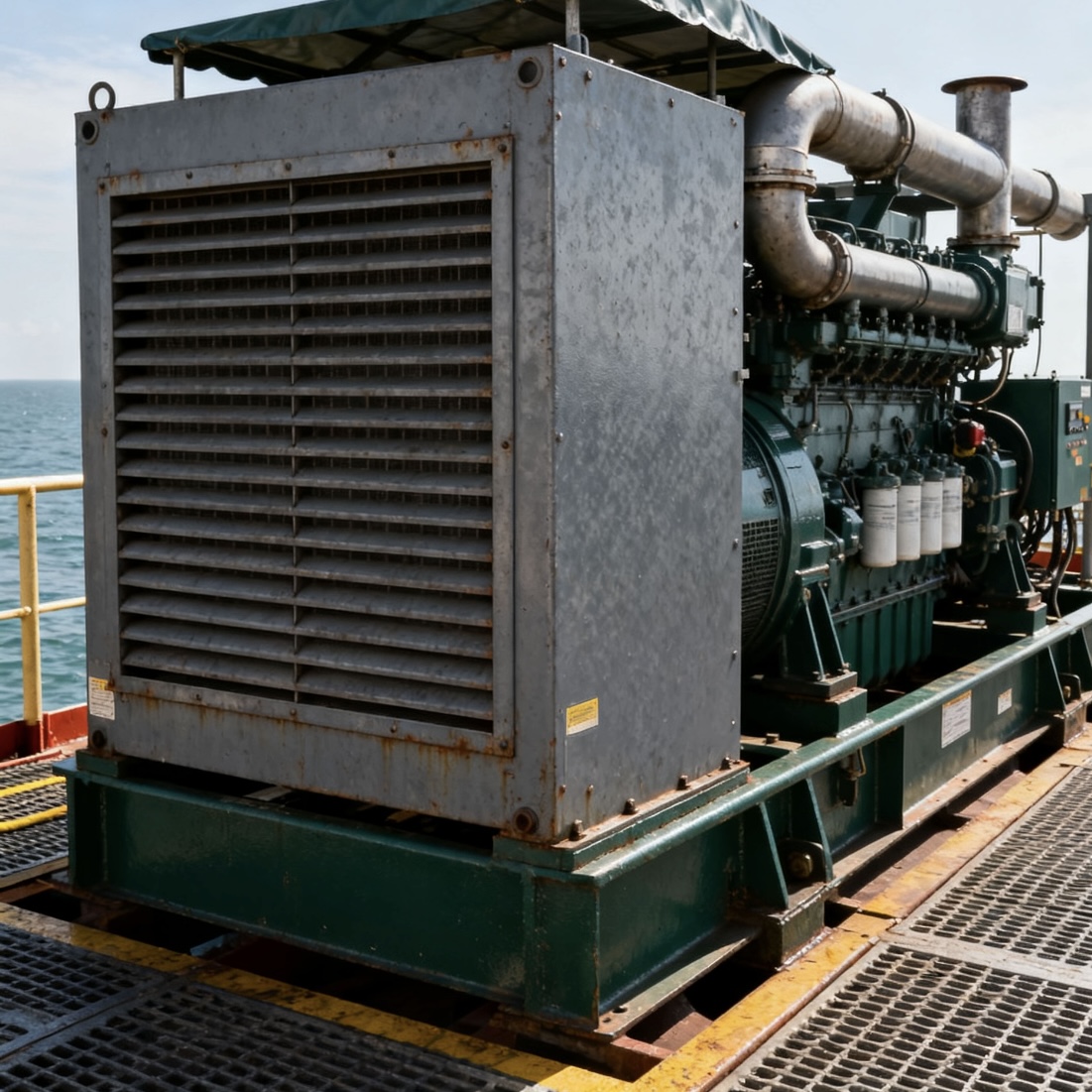

Offshore working platforms (including drilling rigs, production platforms, O&M vessels for wind farms, and other marine work vessels) have fundamentally different power requirements compared to onshore industries: complex load profiles, large motor starting currents, corrosive salt-spray environment, limited space and cooling, constrained fuel logistics and emissions, and extremely high demands for power reliability and continuous operation. Therefore, selecting a diesel generator for offshore applications must be approached as a system engineering proble m—covering electrical, mechanical, structural, and logistics aspects—to ensure the genset can run continuously, safely, and economically in harsh conditions.
Step 1: Load analysis & capacity sizing.
Inventory all platform loads—continuous base loads (hotel services, lighting, HVAC, instrumentation), large transient loads (cranes, hydraulic pumps, compressors, drilling start-ups), and critical emergency loads (fire pumps, emergency lighting, life-support, comms/radar, UPS-backed loads).
Build time-series load profiles (hourly/daily/seasonal) and mark motor starting factors. Use these for sizing parallel generator sets and determining minimum online capacity. Offshore platforms typically design for N+1 or N+2 redundancy to ensure critical loads remain powered upon single-unit failure.
Allow 10%–25% headroom for future expansion or temporary peak loads (deck operations, heavy lifts) to avoid chronic full-load operation and premature life-cycle degradation.
Step 2: Genset type & rated power selection.
Favor offshore generator variants modified for marine use (corrosion protection, marine air intake & exhaust, seawater cooling adaptations, and marine-grade control cabinets).
For heavy motor starts, prefer several mid-to-large gensets in parallel (e.g., 1MW–4MW units) rather than one oversized unit to enable load sharing, maintenance switchover and redundancy.
Match genset rated power with engine output curves and generator short-term overload capability—differentiate continuous ratings and short-duration overload ratings (10s, 1min) for startup events.
Step 3: Fuel & fuel management.
Fuel logistics offshore are limited—assess engine specific fuel consumption (g/kWh) at various load points and select machines with peak efficiency in the 50%–75% load band. Design fuel storage, transfer, filtration, heating and water separation systems and ensure fuel quality control. Maintain emergency fuel reserves for 48–72 hours of critical load.
Step 4: Environmental and installation constraints.
Marine salt-spray, humidity and thermal cycling require elevated protection standards (IP ratings, corrosion resistant coatings, cathodic protection). Ensure adequate ventilation, exhaust routing and vibration isolation; design for sustained full-load operation without thermal derating.
Step 5: Safety and regulatory compliance.
Conform to class & statutory requirements (ABS, DNV-GL, LR, BV) and emission/noise standards (IMO, local requirements). Provide certification, FAT & SAT documentation, and ensure the gensets meet marine fire, explosion and safety criteria.
Following these steps produces a genset selection that balances capacity, reliability and maintainability in a marine environment.

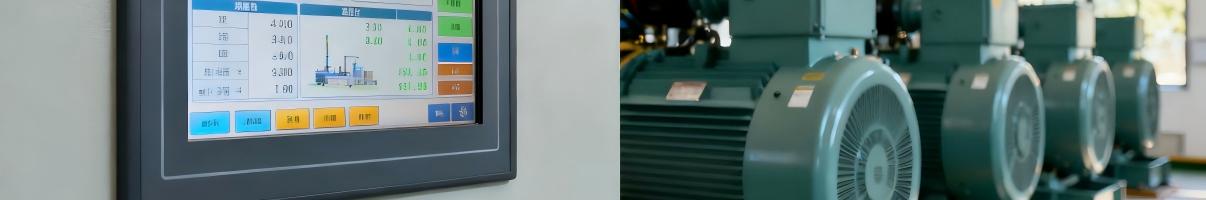

Offshore platforms commonly use parallel genset operation to maximize redundancy and operational flexibility; however, paralleling increases the complexity of governor/AVR control, synchronization, and power quality. Gensets must be selected as part of an integrated control architecture including GCBs, synchronization panels, ATS, switchgear and SCADA. Key elements include:
Paralleling & synchronization strategies.
Units must provide precise voltage and frequency control (AVR, governor response) and should be able to parallel via droop control or electronic power controllers for accurate load sharing. Use digital paralleling controllers and fast GCBs, with redundant communication links (CAN/Modbus/TCP) for resilience. Support islanded operation, black start and bidirectional fault handling.
2.Power quality control.
High inrush currents and non-linear loads (VFDs, rectifiers) generate harmonics and voltage flicker—evaluate short circuit capacity, transformer sizing, and reactive power compensation. Deploy active or passive filters and power factor correction where necessary, and isolate sensitive systems on dedicated UPS buses to maintain stable supply during transfer.
3.Mechanical & vibration/noise mitigation.
Design resilient mountings and elastic foundations, use optimized couplings and damping systems to prevent structure-borne vibration. Provide acoustic enclosures, intake/exhaust silencers and modal analysis to avoid resonance with platform structures.
4.Condition monitoring & remote diagnostics.
Integrate online monitoring (Vib, oil temp/press, exhaust temp, fuel flow, winding temps) into SCADA and cloud analytics for predictive maintenance (PdM). Support communication protocols for remote alarming and trending to detect issues early.
5.Redundancy & resilience.
Determine N+M redundancy based on criticality and define automatic isolation & restart sequences. Consider multiple energy sources (gensets + UPS + battery + optional renewable) for diversified supply and fuel optimization.
Selecting gensets and control systems holistically reduces downtime risk and improves operational efficiency offshore.
Robust installation and maintainability are as important as genset technical parameters. Without proper integration, even high-spec gensets can underperform offshore. Implementation guidance and examples:
Engine room layout & installation.
Prioritize airflow, heat rejection, piping routing, access for maintenance and escape routes. Design fuel tank storage with spill containment and fire segregation. Use marine-grade materials and secure routing for electrical & fuel lines. Employ elastic mountings and a strengthened foundation per class rules.
2.Cooling & exhaust.
Use closed seawater heat exchangers or hybrid cooling systems; design for biofouling and fouling mitigation. Exhaust must include anti-surge features and silencers; ensure exhaust outlets are placed to avoid seawater ingestion.
3.Corrosion, moisture, and fire protection.
Apply corrosion-resistant coatings and choose IP-rated control panels. Design monitored automatic fire suppression, zone detection and interlocks integrated with the platform’s firefighting system.

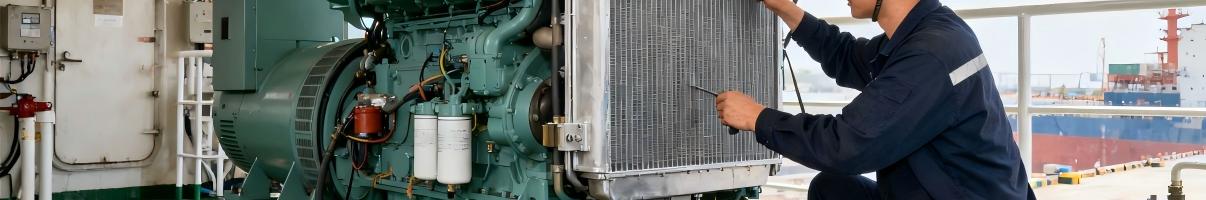

4.Maintenance & spare parts.
Prefer modular gensets with accessible service points. Stock critical spares on board, establish PdM routines and coordinate maintenance windows with weather/supply plans to minimize downtime and costly offshore repairs.
5.Class & statutory compliance.
All platforms must demonstrate compliance with class society rules and statutory regulations—provide test certificates, FAT/SAT reports and proof of emissions/noise compliance.
6.Typical configuration examples.
Small service vessel: 2 × 250–500 kW gensets (N+1), 1 × UPS for control electronics; remote monitoring & automatic switchover.
Service platform: 3 × 800 kW–1.2 MW gensets, black-start capability and 72-hour fuel reserve; seawater heat exchangers & acoustic enclosures.
Major production platform: multiple 2–5 MW gensets in parallel with segmented bus architecture (hotel, process, safety), full class certification and emissions control systems.
Case insights show that splitting capacity into modular parallel gensets improves redundancy, reduces maintenance downtime and optimizes fuel use when combined with condition monitoring.
