Industrial sectors such as oil and gas extraction, petrochemical processing, chemical plants, coal conversion, fuel storage, paint manufacturing, and defense industries all operate in high-risk environments. These sites typically contain flammable gases, vapors, or dust that can ignite if exposed to sparks, arcs, or high temperatures generated by electrical equipment. For these operations, power is not just an energy supply—it is the backbone of safety systems, monitoring devices, emergency lighting, and firefighting systems.
A sudden power loss in such environments could result in catastrophic consequences. For instance, an idle gas compressor could cause dangerous pressure build-up in pipelines; a chemical reaction halt might trigger thermal runaways; a disabled fire pump could allow a small incident to escalate uncontrollably. Yet many hazardous areas—like remote oil fields or offshore rigs—cannot rely on the public grid. In such cases, an diesel generator designed for explosion protection becomes the critical source of safe and continuous power.

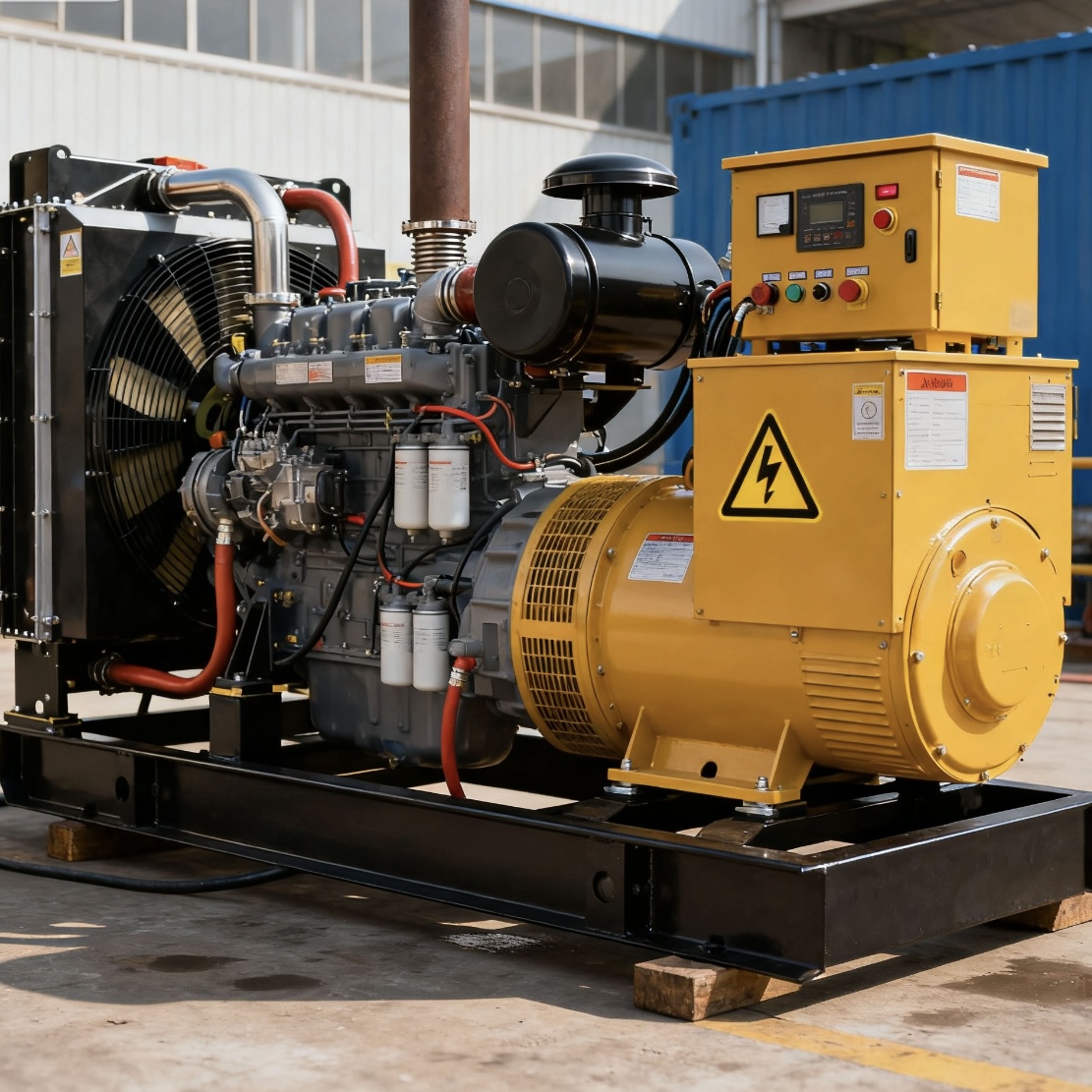

An explosion-proof diesel generator differs fundamentally from a standard genset in its mechanical and electrical protection features. Its alternator, control system, terminals, and exhaust system are specially engineered to contain internal explosions or prevent sparks from igniting the surrounding atmosphere. Protection types include Ex d (flameproof), Ex e (increased safety), and Ex p (pressurized enclosure), each suited for different hazardous zones.
Deploying explosion-proof generators in refineries, offshore rigs, coal facilities, and defense plants is not just a performance decision but a regulatory mandate under ATEX, IECEx, and CNEX standards. These systems provide a stable power backbone, ensuring operational continuity and personnel safety even under the most demanding environmental risks.
Designing an explosion-proof generator is a complex, multi-disciplinary task involving flameproof engineering, electrical isolation, fuel system safety, exhaust management, and environmental adaptation. Selection and deployment must adhere to four key principles: intrinsic safety, redundancy, environmental compatibility, and maintainability.
Proper classification of the installation zone is the first step. According to IEC 60079 and GB3836 standards, hazardous areas are categorized as:
Zone 0: Explosive gases are continuously or frequently present.
Zone 1: Explosive gases are likely to appear during normal operation.
Zone 2: Explosive gases appear only under abnormal conditions.
Explosion-proof gensets are usually installed in Zone 1 or Zone 2. Their enclosures, alternators, junction boxes, and control panels use flameproof or pressurized designs that prevent internal faults from igniting the external atmosphere. Heavy-duty cast housings, flame arrestors, and certified cable glands ensure safe containment.

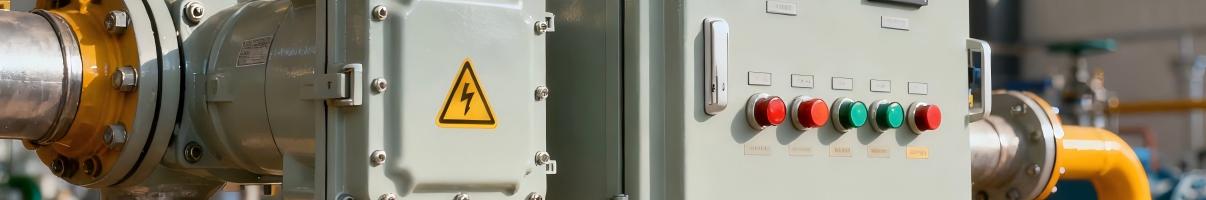

Control systems must use certified explosion-proof components. Panels feature Ex-rated relays, intrinsically safe indicators, and low-voltage signal transmission to minimize ignition risk.
Modern explosion-proof gensets integrate remote monitoring and automatic transfer systems. In oil and gas applications, they interface with DCS/ESD systems for automatic response—e.g., switching to safe mode or shutdown when gas detectors sense abnormal concentrations.
Fuel delivery systems use anti-static piping, grounded tanks, and flame arrestors to prevent vapor ignition. Exhaust lines are heat-insulated and equipped with flame traps or spark arrestors. Some high-level explosion proof generator models feature dual-layer silencers and stainless steel exhaust manifolds to withstand extreme operating conditions.
Configurations vary by site:

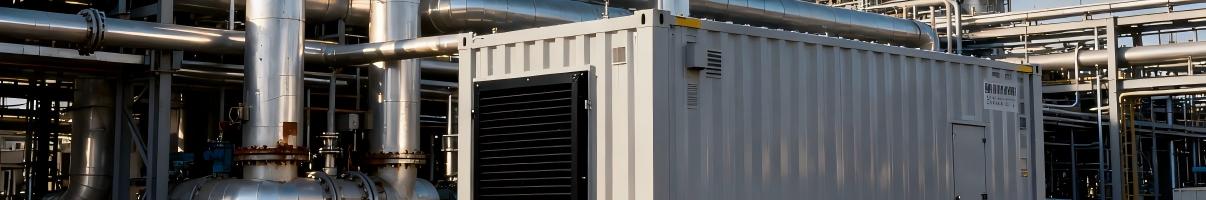

Offshore or LNG platforms use pressurized (Ex p) containerized gensets, maintaining positive pressure inside the housing to keep out explosive gases.
Chemical and coal plants prefer Ex d (flameproof) enclosures—heavier but with superior containment.
Dust-prone environments, like grain processing or coal transfer, require Ex t (dust ignition protection) designs.
In hazardous areas, power reliability is paramount. Explosion-proof generators often operate in parallel configurations (N+1 or N+2 redundancy). Equipped with Ex-rated switchgear and synchronizing controls, they ensure uninterrupted power even during a single-unit fault.
This redundancy supports essential systems such as gas monitoring, emergency pumps, ventilation, and lighting—forming a resilient backbone that minimizes downtime and risk during operation or maintenance.

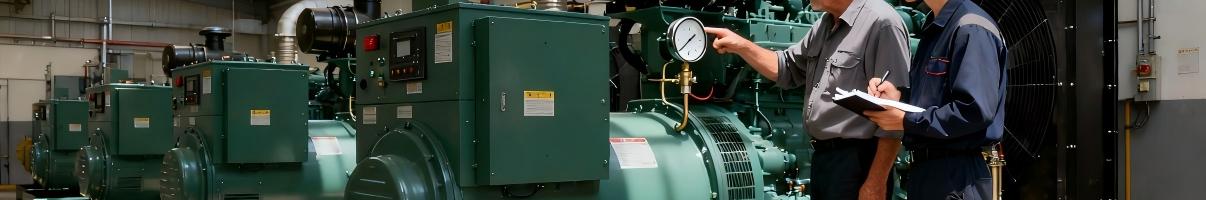

In drilling rigs, compressor stations, and LNG terminals, explosion-proof diesel generators serve as either prime or standby power. Drilling operations demand high torque and frequency stability. Engines are typically mid-speed models with advanced digital governors and built-in gas detection interlocks.
In process units and reactor zones, even a minor spark could initiate a chain reaction. Explosion-proof gensets are usually housed in segregated Ex-rated rooms, with remote monitoring and automatic transfer switching between mains and emergency sources. This ensures uninterrupted power for cooling pumps, control valves, and emergency shutdown systems.
Coal dust and methane (firedamp) make underground mining one of the highest explosion-risk environments. Diesel gensets are placed near the shaft or in flameproof enclosures with independent exhaust and ventilation ducts. Intelligent shutdown systems halt operation if oxygen or gas levels exceed safety thresholds.
In fuel terminals, tank farms, and chemical docks, explosion-proof generators provide emergency lighting, fire suppression, and valve control. These installations often use pressurized container designs, enabling remote control and ventilation safety monitoring.
Regular inspection is critical for long-term reliability:
Check sealing gaskets, bolts, and breather valves for corrosion or leaks.
Monitor positive pressure systems to ensure proper pressurization.
Conduct infrared thermal checks on exhaust lines and junction boxes.
Maintain maintenance logs and renewal records per ATEX/IECEx requirements.
With IoT-enabled monitoring, many modern explosion-proof diesel generators now offer remote fault detection, data logging, and predictive maintenance analytics—ensuring safe and visible operation management.
Today, explosion-proof diesel generators are indispensable in oil & gas, offshore, and chemical projects worldwide. They not only provide electricity but also ensure safety, compliance, and continuous production in some of the world’s most hazardous industrial settings.
