What Is The Difference Between Single-Phase And Three-Phase Diesel Generators?

Technical Differences Between Single-Phase and Three-Phase Diesel Generators (Power Structure, Electrical Principles, and Output Logic)

In the global power-supply industry, diesel generator remain one of the most reliable distributed and backup power solutions for residential, commercial, industrial, and field applications. Among all user concerns, one of the most commonly asked questions is: “What is the difference between a single-phase diesel generator and a three-phase diesel generator?” Although both systems rely on the same mechanical-to-electrical conversion process, the two configurations differ significantly in electrical architecture, load compatibility, application scope, and operating characteristics. Understanding these differences is crucial for making the correct investment decision—especially when designing power systems for overseas markets where electrical standards vary widely.

1. How Single-Phase Power Is Generated: One Waveform, Pulsating Magnetic Field

A single-phase generator uses one or two windings arranged at opposite angles to create alternating current. Because there is only one voltage waveform within each cycle, the output is simpler but also less stable under load fluctuations. This means single-phase systems are inherently designed for light-duty electrical environments where high-torque motor loads are uncommon.

Key characteristics of single-phase power include:

• A single sinusoidal AC waveform with no phase-shift compensation

• A pulsating magnetic field instead of a rotating magnetic field

• Limited ability to start high-inrush motors

• Higher voltage drop over long transmission distances

• Best suited for household and light commercial use

• Lower cost, simple construction, easier maintenance

In short, single-phase systems deliver adequate performance for residential loads but cannot provide the stability required for heavy-duty industrial environments.

2. How Three-Phase Power Is Generated: 120° Phase Shift Creating a True Rotating Field

A three-phase generator includes three separate windings spaced 120 electrical degrees apart. As the rotor turns, the windings generate three sinusoidal waveforms with a constant phase shift. This symmetrical structure produces a stable rotating magnetic field, giving three-phase power its well-known advantages:

• High efficiency in power transmission

• Greater ability to start and operate heavy motor loads

• Lower current for the same output power

• Stable voltage even under varying loads

• Ideal for long-distance power delivery

• Can supply both three-phase and single-phase loads (with proper distribution)

This continuous rotating field is the fundamental reason three-phase power dominates industrial, commercial, and infrastructure applications.

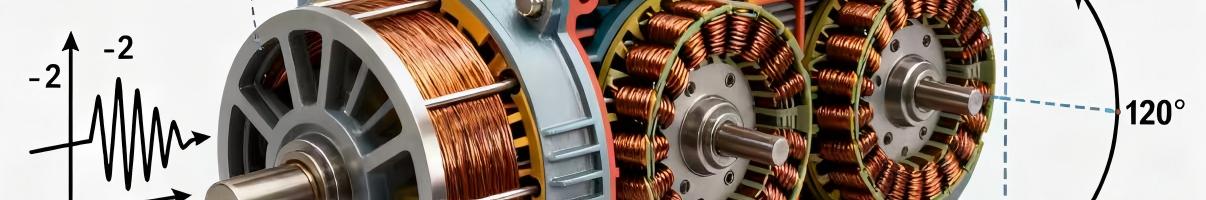

3. Structural Differences and Their Practical Impact

Although single-phase and three-phase generators may look similar, their internal design and output terminals are completely different. These structural distinctions determine their application boundaries.

In summary, the choice between the two configurations is not arbitrary—each serves a distinct engineering purpose.

Application Scenarios, Load Types, Standards, and Real-World Requirements

Most users struggle not because the technology is complicated, but because they are unsure what type of electrical load their facility or equipment requires. This section focuses on real-world environments, international standards, and compatibility considerations.

1. Application Scenarios: Residential vs. Industrial Requirements

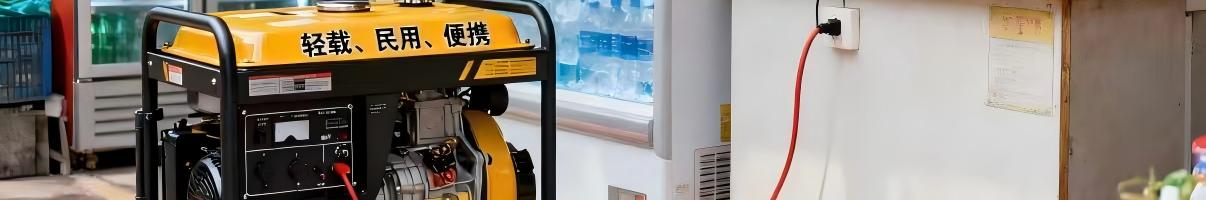

Single-Phase Diesel Generator Usage

Commonly used in environments such as:

• Residential backup power

• Small retail stores

• Small offices

• Portable job-site tools

• Rural households

• Light agricultural work

• Outdoor or temporary supply demand

These applications share the same traits—modest load demand, short-run cycles, and minimal heavy-motor equipment.

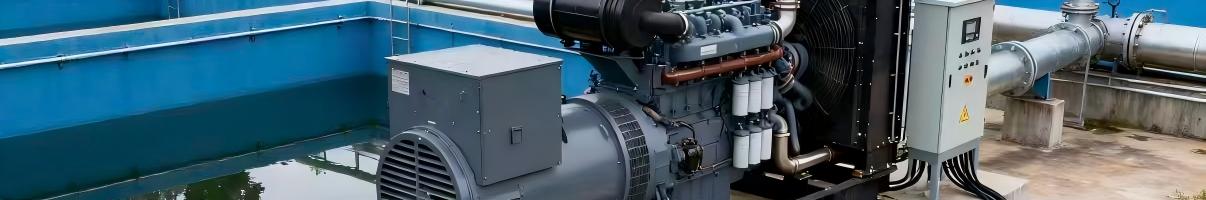

Three-Phase Diesel Generator Usage

Widely used in power-critical industries, such as:

• Manufacturing facilities

• Construction sites

• Data centers

• Hospitals

• Warehouses and cold-chain logistics

• High-rise buildings

• Municipal utilities

• Irrigation and pumping stations

• Mining and oil operations

These environments require stable, continuous, and high-power supply—conditions only a three-phase system can deliver.

2. Load Compatibility: Motor Loads, Single-Phase Equipment, and Mixed Use

Single-Phase Loads

These include home appliances, heaters, lighting systems, office electronics, and small air conditioners. They require minimal torque at startup, which aligns well with single-phase output behavior.

Three-Phase Loads

Three-phase motors, compressors, pumps, machine tools, and industrial HVAC systems make up the majority of industrial power demand. Because they rely on a rotating magnetic field, they cannot operate properly on single-phase power.

Can a Three-Phase Generator Power Single-Phase Loads?

Yes—but with rules:

• Single-phase loads must be balanced across the phases

• Large single-phase loads cannot be placed on one phase alone

• Unbalanced phases can cause overheating, voltage instability, and reduced generator capacity

This is why professional load planning is required for facilities with mixed equipment.

3. Global Electrical Standards and Their Role in Generator Selection

Different countries use different voltages and frequencies:

This means users cannot choose arbitrarily—local compliance, building codes, and equipment standards dictate whether a single-phase or three-phase configuration is required.

Performance, Efficiency, Cost, and Long-Term Value Comparison

1. Performance Differences

Single-Phase Generator Performance

• Simpler waveform

• More voltage fluctuation under high load

• Limited motor-starting ability

• Acceptable for low-demand environments

Three-Phase Generator Performance

• Stable voltage with minimal fluctuation

• Strong motor-starting capability

• Lower line current

• Better adaptability to nonlinear loads

This explains why industries rely overwhelmingly on three-phase solutions.

2. Efficiency Differences and Fuel Economics

Three-phase generators are significantly more efficient:

• Lower copper and transmission losses

• Cooler operating temperatures

• Lower fuel consumption over long cycles

• Higher usable output for the same rated power

In long-term applications, a three-phase generator almost always offers lower operating costs compared to a similar single-phase model.

3. Cost Differences and Long-Term Investment

Thus:

• Small-scale users save money with single-phase.

• Large-scale users save money with three-phase.

4. System Stability and Safety

Three-phase systems inherently support:

• Lower harmonic distortion

• Reduced current imbalance

• Higher reliability

• More stable power to sensitive equipment

This makes them essential in medical, data center, and industrial environments.

5. Choosing the Right System (Safety-Oriented, No Operational Instructions)

Choose a Single-Phase Diesel Generator if:

• You power a home or small office

• Loads include only single-phase appliances

• Your power demand is below 10–12 kW

• You do not operate motor-intensive equipment

Choose a Three-Phase Diesel Generator if:

• You operate factories, workshops, pumps, or HVAC systems

• Motor loads are present

• You need stable, long-duration power

• Your project follows industrial electrical standards

In essence: equipment type determines the phase—not the user’s personal preference.
